Caracteristici generale Video Matrix VGA/Audio 2 x 4, Aten VS0204
- Tip conexiune:VGA
- Numar porturi:2 x 4
- Rezolutie de pana la:1920 x 1200
- Latime de banda maxima:200 MHz
- Distanta maxima:30 m
- Carcasa:Metalica
- Dimensiuni:20.00 x 7.61 x 4.40 cm
- Cod bare (EAN):4710423773844
Descriere Video Matrix VGA/Audio 2 x 4, Aten VS0204

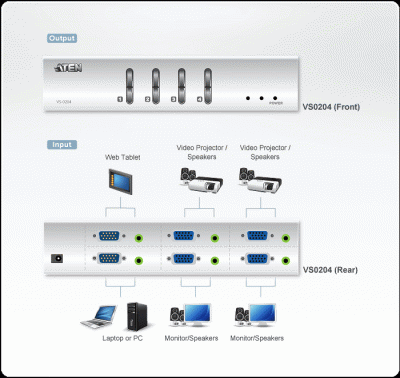

VS0204 Video Matrix Switch permite video si audio de la 2 calculatoare care urmeaza sa fie dirijate la 4 monitoare, proiectoare si difuzoare. Ideal pentru prezentari si aplicatii in cazul in care informatiile de la mai multe computere este livrat la mai multe destinatii.
- Each of the 4 video outs can toggle between Source 1 and Source 2 using front panel pushbuttons.
- Audio enabled.
- Duplicate and enhance video signals to up to 65 m (max.) *
- Expandable: Cascade to ATEN's video splitters to support hundreds of video displays.
- With up to 300 MHz Video Bandwidth.
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.
Display Connections | 2 | ||
Computer Connections | 4 | ||
Port Selection | Pushbutton | ||
Connectors | Input | Vdieo | 2 x HDB-15 Male (Blue) |
Audio | 2 x Mini Stereo Jack Female (Green) | ||
Output | Vdieo | 4 x HDB-15 Female (Blue) | |
Audio | 4 x Mini Stereo Jack Female (Green) | ||
Power | 1 x DC Jack (Black) | ||
LEDs | Power | 1 (Blue) | |
Activity / Source | 2 (Green) | ||
Input | 1 | 4 (Green) | |
2 | 4 (Orange) | ||
Video | 1920 x 1440 @ 60Hz | ||
Video Bandwidth | 300 MHz | ||
Sync Range | Sync Positive/Negative | ||
Signal Range | 65m (210') | ||
Power Consunption | DC 5.3V ,3.02W (Max.) | ||
Environment | Operating Temp. | 0-50˚C | |
Storage Temp. | -20-60˚C | ||
Humidity | 0-80% RH, Non-condensing | ||
Physical Properties |
Housing | Metal | |
Weight | 0.69 kg | ||
Dimensions ( L x W x H ) | 20.00 x 7.50 x 4.50 cm |
