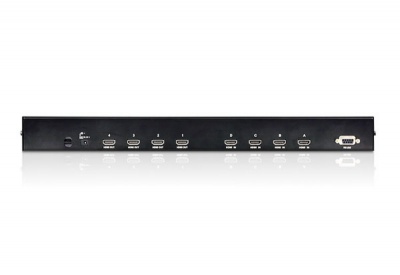

Caracteristici generale Video Matrix HDMI 4 x 4, Aten VM0404H
- Tip conexiune:HDMI
- Numar porturi:4 x 4
- Distanta maxima:15m
- Carcasa:Metalica
- Dimensiuni:43.70 x 15.96 x 4.40 cm
Descriere Video Matrix HDMI 4 x 4, Aten VM0404H
VM0404H este un 4x4 HDMI Switch Matrix, care ofera o modalitate convenabila de video de inalta definitie ruta si audio de la oricare din patru surse HDMI la oricare dintre patru ecrane HDMI. VM0404H permite sa va conectati patru dispozitive HDMI (cum ar fi o camera video HD sau caseta de satelit, player HD-DVD, Blu-ray player hi-def, PC-uri home theatre, stand-streaming singur media player, sau consola de jocuri), la patru HDMI monitoare, monitoare, proiectoare sau televizoare, in acelasi timp. Telecomanda si butoanele din panoul frontal va permit sa selectati rapid si uºor prin surse HDMI si afiseaza, in timp ce LED-urile de pe panoul frontal indica dispozitivul sursa pentru fiecare ecran dintr-o privire.

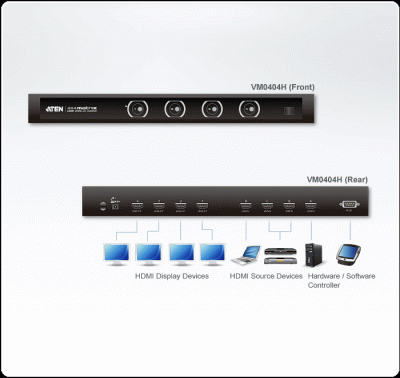

- Connects any of four HDMI sources to any of four HDMI displays
- Toggle between HDMI sources and displays using remote control or front panel pushbuttons
- Superior video quality – HDTV resolutions of 480p, 720p,1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)
- HDCP 1.1 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- HDMI (3D, Deep Color)
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Long-distance transmission – up to 20 m (24 AWG)
- Built-in bi-directional RS-232 serial remote port for high-end system control *
- Power On Detection – if one HDMI source is powered off, the VM0404H will automatically switch to the next powered-on source
- DDC compatible
- Signaling rates up to 2.25 Gbits in support of 1080p display
- All-metal casing
- Easy and affordable way to add four HDMI inputs to your multiscreen home theater system
- Rack Mountable
* Note: The VM0404H AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)
Display Connections | Direct | 4 | |
HDMI Input Connections | 4 | ||
Connectors | Device | HDMI In | 4 x HDMI Type A Female (Black) |
Display | HDMI Out | 4 x HDMI Type A Female (Black) | |
RS-232 Port | 1 x DB-9 Female (Black) | ||
Power | 1 x DC Jack | ||
Switches | Port Selection | 4 x Pushbuttons | |
LEDs | Selected | 16 (Green) | |
Video Resolution | HDTV resolutions up to 1080p; computer resolutions up to WUXGA (1920x1200) |
||
Power Consumption | DC5.3V, 9W | ||
Environment | Operating Temp. | 0-50°C | |
Storage Temp. | -20-60°C | ||
Humidity | 0-80% RH, Non-condensing | ||
Physical Properties |
Housing | Metal | |
Weight | 1.86 kg | ||
Dimensions ( L x W x H ) |
43.70 x 15.96 x 4.40 cm |
